Respiratory Care Device
Respiratory Care Device
HFT750
HFT700
Respiratory Care Device PRODUCTS
HFT750
HFT750
Key feature
1
The world’s first portable HFNC+NIV device that allows continuous patient care
2
All-in-one respiratory solution (HF, CPAP, bi-level)
: Caring all respiratory patients except invasive ventilation case easily caring patients in accordance with their conditions only by changing applications and operation modes]
: Caring all respiratory patients except invasive ventilation case easily caring patients in accordance with their conditions only by changing applications and operation modes]
3
Intuitive and user-friendly UI
4
Rapid response to patients’ conditions by monitoring their respiration rate, SpO2, and S/F Ratio
5
Supplying stable and a certain amount of oxygen through the electrical oxygen blending technology
6
Equipped with TSF (Tissue Saturation Fraction) function to automatically adjust FiO2 concentration by measuring the patient's SpO2.
7
Easily building the breathing circuit of a patient and applications
8
Remote monitoring of patients by linking with the central monitoring system
Brief Specification
1.
Display : 5 inches touch screen
2.
Specification :
1) High Flow (HF) mode
High flow setup : 1 - 60 LPM
FiO2 setup : 21 - 100 %
Monitoring factors : PTIF, ROX Index, SpO2, S/F ratio, RR, PR
2) CPAP mode
CPAP setup : 4 - 20 cmH2O
PA (+) : Off, 1 - 3 cmH2O
PA (-) : OFF, -3 - -1 cmH2O
3) BiPAP mode
IPAP setup : 4 - 40 cmH2O ± (1.7 + 4 % of the set value) cmH2O
EPAP setup : 4 - 20 cmH2O ± (1.7 + 4 % of the set value) cmH2O
Respiratory Rate : Off, 2 - 60 BPM
Ins. time : 0.5 - 3.0sec
1) High Flow (HF) mode
High flow setup : 1 - 60 LPM
FiO2 setup : 21 - 100 %
Monitoring factors : PTIF, ROX Index, SpO2, S/F ratio, RR, PR
2) CPAP mode
CPAP setup : 4 - 20 cmH2O
PA (+) : Off, 1 - 3 cmH2O
PA (-) : OFF, -3 - -1 cmH2O
3) BiPAP mode
IPAP setup : 4 - 40 cmH2O ± (1.7 + 4 % of the set value) cmH2O
EPAP setup : 4 - 20 cmH2O ± (1.7 + 4 % of the set value) cmH2O
Respiratory Rate : Off, 2 - 60 BPM
Ins. time : 0.5 - 3.0sec
3.
Language Support :
Korean, English
Korean, English
4.
Options :
Cart(O2 Cylinder), Masimo SpO2 module kit, Wifi, Blue tooth, TSF
Cart(O2 Cylinder), Masimo SpO2 module kit, Wifi, Blue tooth, TSF
Product Image
Respiratory Care Device PRODUCTS
HFT700
HFT700
Key feature
1
The product with all functions for non-invasive respiration care
2
The product with the 3-in-1 mode (high-flow respiration care, CPAP, and non-invasive ventilation)
3
Caring all respiratory patients except invasive ventilation case
Easily caring patients in accordance with their conditions only by changing applications and operation modes
Easily caring patients in accordance with their conditions only by changing applications and operation modes
4
Intuitive and user-friendly UI
5
The product that enables non-invasive care, humidification, heating, FiO2 setup, and check of respiration rate, pulse rate, and SpO2 at the same time
6
Supplying stable and a certain amount of oxygen through the electrical oxygen blending technology
7
Rapid response to patients’ conditions by monitoring their respiration rate, SpO2, and S/F Ratio
8
Easily building the breathing circuit of a patient and applications
9
Remote monitoring of patients by linking with the central monitoring system
Brief Specification
1.
Display : 5 inches touch screen
2.
Specification :
1) High Flow (HF) mode
High flow setup : 1 - 60 LPM
FiO2 setup : 21 - 100 %
Monitoring factors : S/F Ratio, RR, SpO2, PR
2) CPAP mode
CPAP setup : 4 - 20 cmH2O
PA (+) : Off, 1 - 3 cmH2O
PA (-) : OFF, -3 - -1 cmH2O
3) BiPAP mode
IPAP setup : 4 - 40 cmH2O ± (1.7 + 4 % of the set value) cmH2O
EPAP setup : 4 - 20 cmH2O ± (1.7 + 4 % of the set value) cmH2O
Respiratory Rate : Off, 2 - 60 BPM
Ins. time : 0.5 - 3.0sec
1) High Flow (HF) mode
High flow setup : 1 - 60 LPM
FiO2 setup : 21 - 100 %
Monitoring factors : S/F Ratio, RR, SpO2, PR
2) CPAP mode
CPAP setup : 4 - 20 cmH2O
PA (+) : Off, 1 - 3 cmH2O
PA (-) : OFF, -3 - -1 cmH2O
3) BiPAP mode
IPAP setup : 4 - 40 cmH2O ± (1.7 + 4 % of the set value) cmH2O
EPAP setup : 4 - 20 cmH2O ± (1.7 + 4 % of the set value) cmH2O
Respiratory Rate : Off, 2 - 60 BPM
Ins. time : 0.5 - 3.0sec
3.
Language Support :
Korean, English
Korean, English
4.
Options :
Cart, IV Pole
Cart, IV Pole

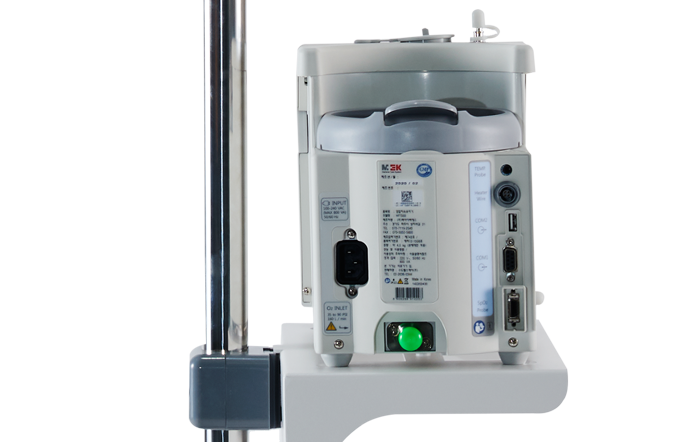

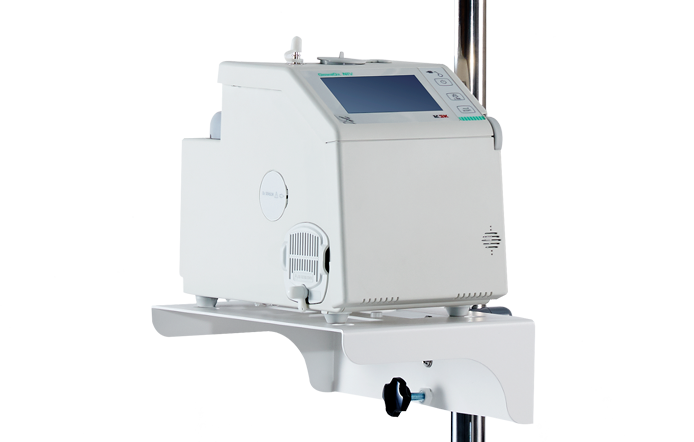

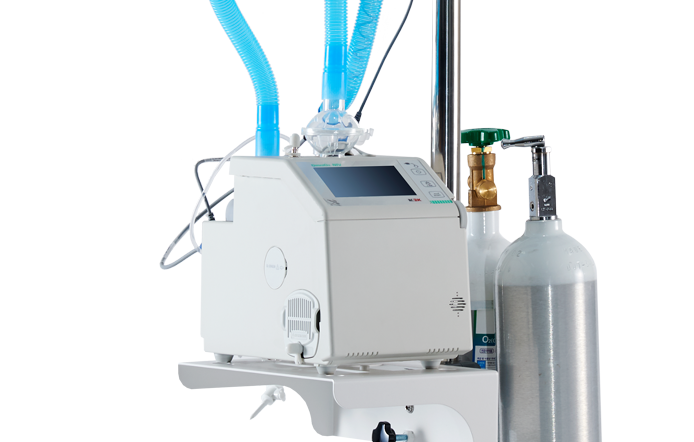

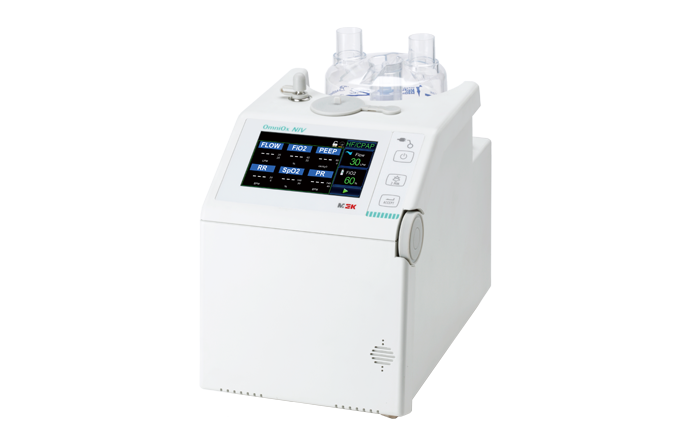

Product Image
